Why Standard Screen Doors Never Quite Fit Your Sliding Glass Door
If you’ve ever tried replacing a patio screen with a box-store door, you already know the problem: custom screen doors for sliding glass door openings exist precisely because no two patio frames are exactly alike.
Here’s a quick breakdown of your main options:
| Type | Best For | Key Feature |
|---|---|---|
| Standard custom sliding screen | Most homes | Extruded aluminum frame, exact-cut to size |
| Heavy-duty / premium screen | High-traffic doors | Steel ball-bearing rollers, die-cast corners |
| Security screen door | Ground-floor or street-facing patios | Aluminum grille, keyed mortise lock |
| Pet door patio panel | Pet owners | 7x stronger PetScreen mesh, adjustable pet flap |
| Pet-resistant screen door | Dogs and cats, no pet flap needed | Tear- and puncture-resistant PetScreen mesh |
The root cause of most awkward fits is simple: retail screen doors come in a handful of standard sizes, but real sliding door frames vary by fractions of an inch. A gap at the top or bottom track doesn’t just look bad; it lets in bugs, drafts, and Colorado dust. The good news is that custom-made options can be sized down to 1/16th of an inch, so you get a door that actually fits.
At Complete Window Care, our experienced window, door glass, and screen repair team helps Colorado Springs homeowners find the right custom screen doors for sliding glass door frames, including tricky non-standard openings. We’ll walk you through everything you need to know to get it right the first time.
Main Types of Custom Screen Doors for Sliding Glass Door
When upgrading your patio setup, selecting the proper frame style ensures smooth operation for years. Complete Window Care can help with custom screen door repair and replacement when your patio slider needs a better-fitting screen, stronger mesh, or smoother rollers.
If your existing patio door also sticks, drags, or falls out of alignment, our sliding glass door repair team can address track, roller, and frame issues before a new custom screen is measured.
Standard and Heavy-duty Custom Screen Doors for Sliding Glass Door
For standard replacement projects, custom doors come in two main structural profiles:
- Standard classic kits: These feature a 1 5/8-inch by 1/2-inch frame profile built from .050 gauge extruded aluminum. They utilize nylon roller wheels and square corner inserts. They are budget-friendly and work exceptionally well for low- to moderate-traffic doorways.
- Heavy-duty premium kits: Designed for active households with kids, pets, or high daily usage, premium models feature a beefier 2-inch by 1-inch frame profile. Instead of plastic parts, heavy-duty kits utilize solid die-cast aluminum corners, flush inset handles, and smooth steel ball-bearing wheels.
Upgrade to steel ball-bearing rollers with axle-and-nut height adjustments if you want your door to glide effortlessly without jumping the track every time someone goes outside.

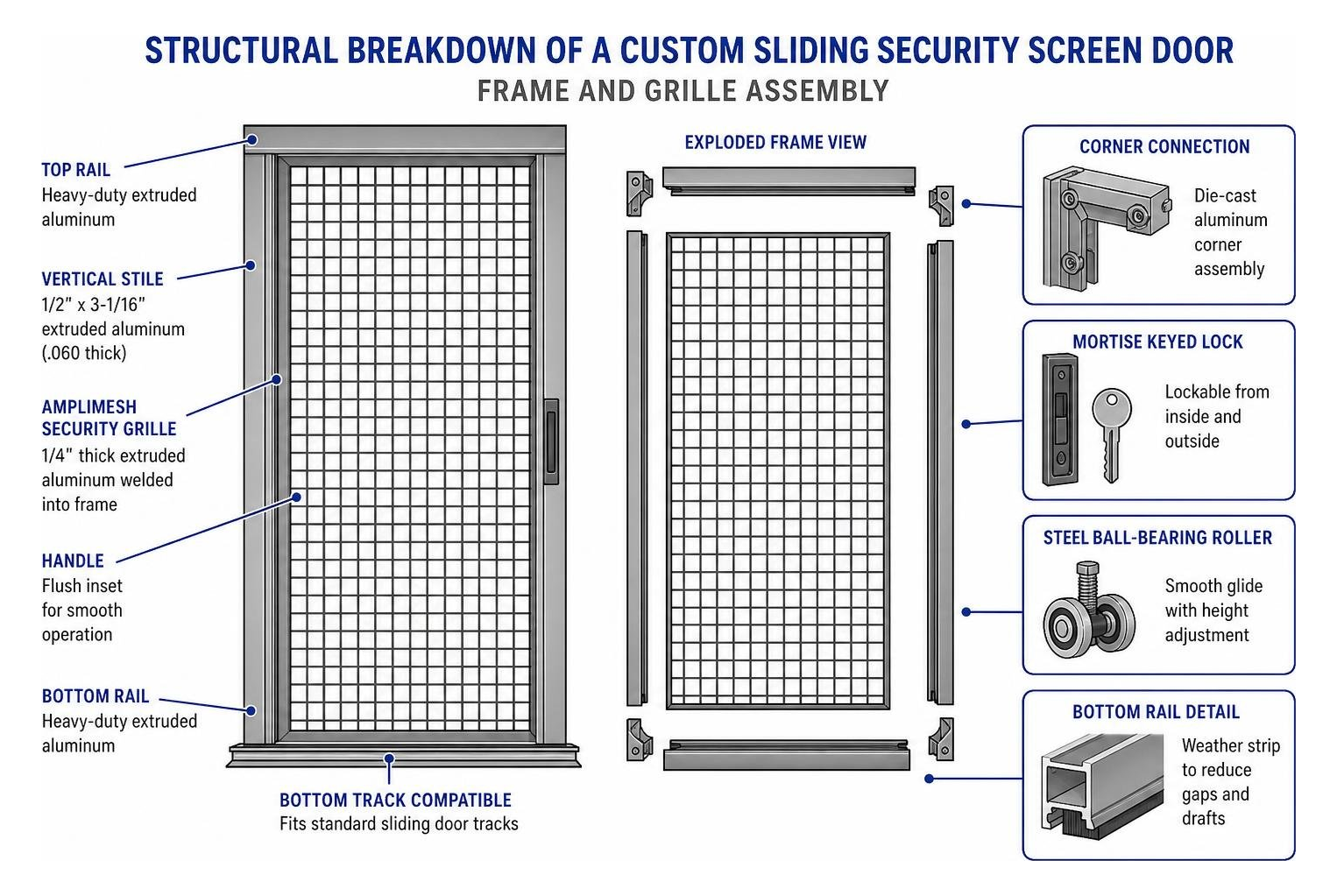

Custom Security Screen Doors for Sliding Glass Door
If your sliding patio door opens onto a ground-floor deck or street-accessible backyard, security becomes a top priority. Standard screen mesh offers zero resistance against break-ins, but dedicated sliding security screen doors bridge the gap between fresh air and home protection.
Custom security sliders feature:
- A heavy-duty 1/2-inch by 3-1/16-inch frame constructed from .060 thick extruded aluminum.
- A 1/4-inch thick extruded aluminum Amplimesh grille built directly into the frame structure.
- Mortise-keyed latch locks that allow you to lock the screen door securely from both inside and outside.
Unlike traditional steel security doors, which can rust over time and transfer heavy solar heat into your living space, extruded aluminum security screen doors never rust or corrode in rain, snow, or damp conditions.
Pet Door Patio Panels and Pet-resistant Screen Doors
Pets are notoriously hard on screen doors. Dogs push against the mesh with their paws, while cats view standard fiberglass screens as a climbing wall.
You have two effective choices when customizing for pets:
- PetScreen mesh upgrade: Swap standard fiberglass for heavy-duty vinyl-coated polyester mesh. This specialized mesh is 7x stronger than standard fiberglass mesh, making it completely tear-resistant and puncture-resistant against claws and accidental impacts.
- Patio insert panels with built-in pet flaps: If you want your pets to come and go freely without leaving the main glass slider propped open, install an adjustable patio panel insert. Made-to-fit options include magnetic weather seals, internal frame spacers, and adjustable flap height options so you can fine-tune the setup for your pet.
How to Choose Frame Materials, Screen Mesh, and Assembly Styles
Selecting the correct combination of frame specs and mesh material directly impacts how long your door lasts and how easily it operates.
| Feature | Classic Custom Kit | Premium Custom Kit | Security Custom Screen |
|---|---|---|---|
| Frame Profile Dimensions | 1 5/8″ x 1/2″ | 2″ x 1″ | 1/2″ x 3-1/16″ |
| Aluminum Gauge | .050 Extruded | .050 Heavy Extruded | .060 Heavy Extruded |
| Roller System | Top & bottom nylon wheels | Adjustable steel ball-bearing rollers | 1-1/4″ Bottom steel ball bearings |
| Corner Construction | Standard plastic square inserts | Solid die-cast aluminum corners | Heavy-duty welded/fastened aluminum |
| Weatherstripping | standard woolpile | Integrated perimeter woolpile | High-density woolpile barrier |
| Ideal Application | Low/moderate traffic, low budget | High traffic, kids, windy areas | Security-conscious, ground-floor entries |
Selecting Frame Finishes and Specialty Mesh Options
Custom frames are available in baked-enamel factory finishes, typically white, bronze, sandstone, black, and anodized mill, allowing you to match your existing glass door frame perfectly.
Beyond frame finish, select the screen mesh tailored to your specific environment:
- Standard fiberglass (18×16): Great clarity and general insect protection for standard patio doors.
- PetScreen: Heavy-duty weave engineered for extreme durability against claws and impacts. If your current screen is torn or loose, sliding door rescreening may be enough to restore protection without replacing the full frame.
- Solar screen mesh: Blocks up to 80%–90% of solar heat and UV rays before heat enters through your patio glass slider, keeping living rooms significantly cooler during sunny Colorado summers.
- High-visibility UltraVue mesh: Engineered with ultra-fine yarn to maximize natural light and airflow while remaining virtually invisible to the eye.
For homeowners comparing repair options, this practical screen door repair walkthrough explains how rollers, spline, mesh, and frame condition affect whether a simple repair or a custom replacement makes more sense.
Every custom door frame should also feature perimeter woolpile weatherstripping. Woolpile creates a tight barrier against crawling pests and mosquitoes while cushioning the door as it slides along top and bottom channels.
Knock-down Kits vs. Fully Assembled Custom Doors
When ordering a custom screen door, you can choose between a knock-down (KD) DIY kit and a fully assembled door:
- Knock-down KD kits: Frame rails ship flat in protective packaging, pre-cut to your exact dimensions down to 1/16th of an inch. Because flat boxes qualify for standard parcel delivery, shipping costs are minimal. Assembly requires zero frame cutting and takes under 30 minutes with basic household tools.
- Fully assembled doors: Arrive pre-assembled, fully screened, and ready to drop directly into your door track. However, because assembled custom screen doors over 46 inches wide exceed standard parcel carrier size limits, they require specialized freight shipping. Freight carriers require strict delivery inspection upon arrival.
Manufacturers work within a 1/8-inch manufacturing tolerance on frame cuts, ensuring an exact fit when dropped into standard sliding channels.
How to Accurately Measure for a Custom Sliding Screen Door
Because custom screen doors are cut to your exact specifications and cannot be trimmed at home, taking accurate initial measurements is crucial.
Step-by-Step Measuring Process
To guarantee your custom screen door slides smoothly without binding, follow this sequence using a reliable metal tape measure:
- Measure frame height in 3 locations: Place your tape measure inside the top track channel and measure down to the top edge of the bottom track pencil rail. Take three measurements: inside left, center, and inside right. Record the shortest dimension down to 1/16th of an inch.
- Measure frame width: Measure horizontally from the inside jamb where the screen rests when closed to the edge of the glass door panel jamb when open. Take top, middle, and bottom readings, recording the largest width to ensure full overlap.
- Check lock orientation: Determine whether your latch lock is mounted on the interior or exterior side of the frame so the handle hardware is pre-drilled on the correct side.
- Identify special track details: Look closely at your track style. Does your door feature double upstands or stand-off ridges? Measure from the deep top channel to the top of the bottom guide rail ridge.
If your frame needs general maintenance before taking measurements, fix track alignment, roller drag, and debris first so your measurements reflect how the door actually sits.
DIY Assembly and Installation Workflow
If you ordered a custom knock-down kit, follow this simple setup workflow:
- Clear a flat work area: Lay out the four pre-cut frame rails, four corner inserts, rubber spline, handles, and screen mesh on a flat carpeted floor or clean work surface.
- Assemble frame corner inserts: Insert the corner pieces, either nylon or die-cast aluminum, into the pre-cut frame rails. Tap gently with a rubber mallet if necessary until corners sit square and tight.
- Lay out mesh and roll spline: Drape your chosen mesh over the frame. Starting at one corner, press the vinyl spline into the frame groove using a standard spline roller tool. Keep gentle, outward pressure on the mesh as you roll to ensure a tight drum-like finish without warping the aluminum frame.
- Trim excess mesh: Trim excess screen material around the frame groove using a sharp utility knife angled outward away from the frame.
- Install handles and drop into track: Attach handle hardware and adjustable wheels. Lift the top of the door into the deep upper channel of your sliding door track, compress the top roller springs, and swing the bottom wheels over the bottom pencil rail. Adjust the roller height screws at the bottom corners until the door glides smoothly and sits plumb against the side jamb.
For a deeper dive into screen maintenance, check your rollers, spline, and frame condition before deciding whether a quick repair or a full custom screen door is the better long-term fix.
Professional Installation vs. DIY Custom Screen Door Setup
Deciding whether to tackle your custom screen door installation yourself or hire professional local installers comes down to comfort level, time, and track complexity.
While assembling a flat-pack kit is relatively easy, mismeasuring custom-cut aluminum frame lengths by even 1/4 inch can lead to binding rollers or annoying light gaps. The right choice depends on whether your track is square, clean, and compatible with the screen style you want.
For homeowners who want local help instead of a DIY install, our Colorado Springs screen repair technicians can measure the opening, check the track, and recommend the right mesh and frame style for the home.
Working with professional technicians offers major advantages:
- Exact precision: Experienced installers verify track dimensions down to 1/16th inch, eliminating costly measuring mistakes.
- Track calibration: Pros clean tracks, adjust roller tension, align strike plates, and level jambs so your custom screen door glides effortlessly.
- Specialized track solutions: Older, proprietary, or non-standard patio tracks that lack an outer screen track may require custom L-brackets or built-out track adapters. Pros handle these modifications on site.
- Warranty and peace of mind: Custom door components may include manufacturer warranty coverage on mechanical hardware and frame components. Hiring a professional service also helps ensure that frame assembly and installation are covered by local service guarantees.
Frequently Asked Questions About Custom Sliding Screen Doors
What is included in a custom sliding screen door knock-down kit?
A standard custom knock-down kit includes four custom-cut extruded aluminum frame rails, four heavy-duty corner inserts, adjustable roller wheels, a handle and locking mechanism, woolpile weatherstripping, Phifer fiberglass or PetScreen mesh, rubber installation spline, and complete assembly instructions. Everything is pre-cut to your specific order dimensions, requiring no cutting tools.
How long do custom screen doors take to ship and what warranty covers them?
Custom sliding screen door kits typically ship within 5 business days from order placement. Frames and hardware components are backed by a 90-day manufacturer warranty against defects (excluding screen mesh torn by external force). For fully assembled doors shipped via freight carriers, always inspect the outer crate and sign off on driver delivery slips only after verifying that the frame has not suffered concealed transit damage.
Can I add a pet door panel to a vinyl sliding door track?
Yes! Pet door patio panels work seamlessly with vinyl sliding door tracks. Because vinyl door tracks are typically wider (around 1.5 inches) than traditional aluminum tracks (1 inch), patio inserts feature spring-loaded top height adjustments and thick rubber weatherstripping to create an airtight seal. For non-standard vinyl tracks lacking outer guide channels, simple track extension adapters or floor L-brackets can be added to hold the panel securely in place.
Conclusion
Say goodbye to sticky rollers, bent frames, and annoying gaps at the bottom of your patio slider. Ordering a custom screen door for sliding glass door openings guarantees an exact fit, smooth operation, and superior insect protection tailored specifically to your home.
Whether you prefer a lightweight DIY knock-down kit or heavy-duty security and pet-resistant screen doors, exact measurements down to 1/16th inch ensure long-lasting performance for years to come. If your primary patio glass slider is old, foggy, or drafty, evaluate the main door first so a new screen is fitted to a stable, properly working frame.
