How Retractable Screens Compare to Traditional Double Door Options
A retractable double door screen protects wide entryways by using spring-loaded side cassettes that let two mesh panels pull smoothly toward the center and seal with full-length magnetic strips. When not in use, both screens roll completely out of sight, preserving the full walkable opening and your home’s curb appeal.
Wide architectural entryways like French doors add natural light and style to a home, but finding a screen that preserves that openness can be tricky. Before choosing a double-door retractable screen, it helps to compare common sliding door screen options and see how each design affects airflow, foot traffic, and usable doorway space.
Traditional hinged double screen doors swing into your living room or out across your patio deck. They demand valuable clearance, frequently bang shut on windy days, and obscure your entry doors all year long. Sliding screen panels can work well, but on French doors, they often leave one side permanently covered by a glass or screen panel, cutting your walkable space in half.

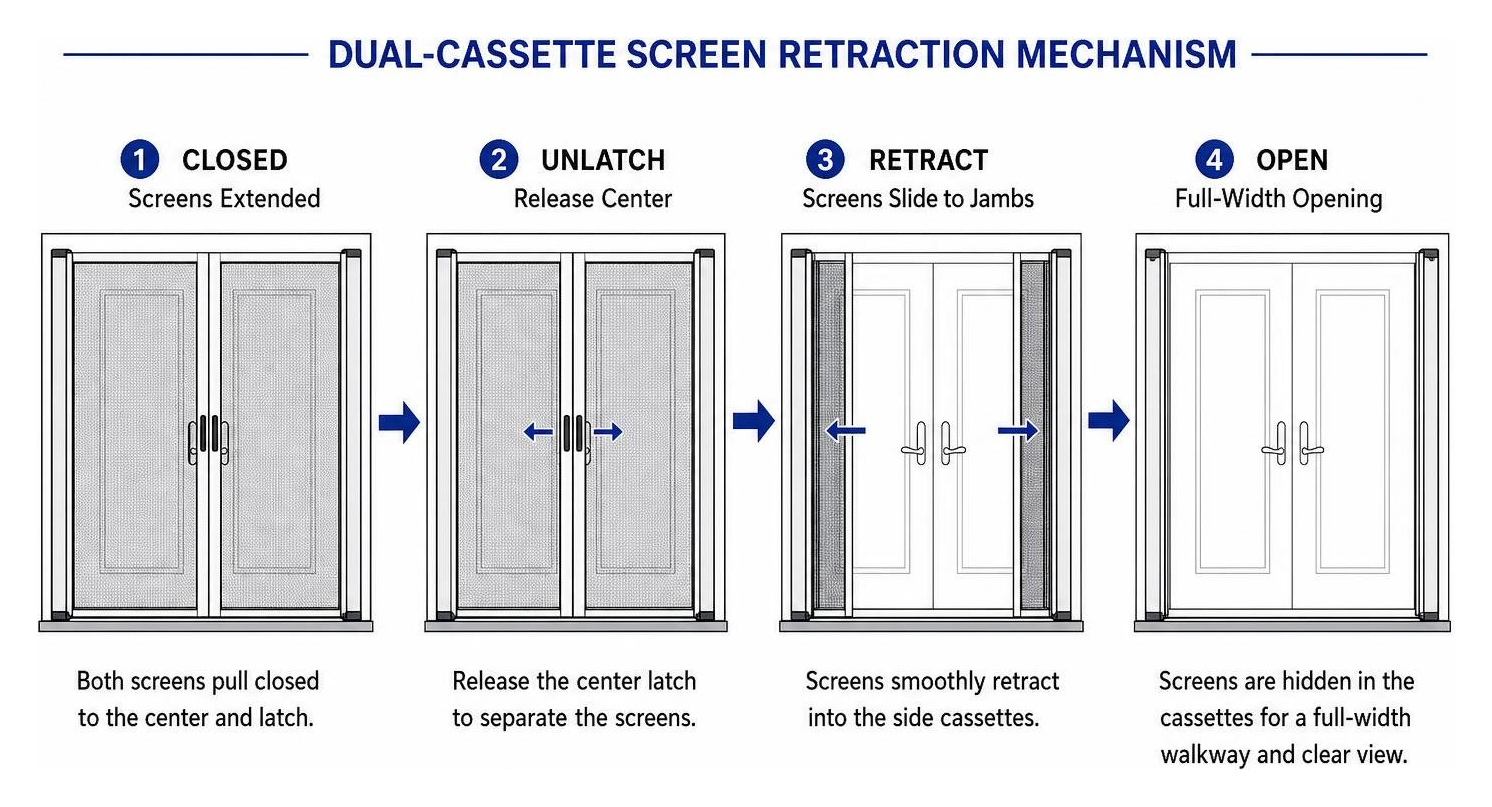

Dual-cassette retractable systems resolve these issues by placing a compact, spring-loaded housing on each side of the door frame. When you open both door panels to host guests or catch an evening breeze off the mountains, both screens pull smoothly toward the center and latch together. When you retract them, the mesh rolls away entirely, preserving your home’s curb appeal and doorway width.
| Feature / Metric | Double Door Retractable Screens | Traditional Sliding Screens | Dual Hinged Screen Doors |
|---|---|---|---|
| Walkable Opening | 100% full-width opening available | Max 50% opening (one panel fixed) | 100% full-width opening available |
| Aesthetic Impact | Hidden in side cassettes when open | Permanently visible across one side | Permanently visible over entry doors |
| Space Requirement | Zero swing clearance needed | Frame track depth needed | Requires wide inward or outward swing arc |
| Wind Resistance | Protected when rolled; uses magnets | Moderate (can jump bottom track) | Moderate (susceptible to wind slam) |
| Independent Side Use | Yes (one stationary, one active) | No (tracks slide over each other) | Yes (dual handles and latches) |
Key Features to Look for in a Retractable Double Door Screen
Selecting the right system comes down to hardware quality and daily usability. Dual retractable units contain moving parts, internal recoil springs, and continuous tension lines, making component build quality critical.
- Extruded Aluminum Housings: Choose powder-coated aluminum cassettes rather than lightweight plastic. Aluminum resists seasonal temperature swings, sun exposure, and corrosion while shielding internal rollers from grit and moisture.
- Full-Length Magnetic Seals: High-grade dual units feature full-length magnetic strips along the pull bars. When drawn together, the vertical edges snap into place, forming an insect-tight barrier from head jamb to sill.
- EZ-Glide Track Systems: Low-friction top and bottom guide rails keep the mesh edge steady as it moves across the span, preventing fabric bunching and track derailments.
- Patented Speed Reducers: Controlled recoil dampers slow the roll-up speed. If someone accidentally drops the handle, the screen retracts gently into the cassette rather than slamming back against the frame.
- Walk-Through Prevention Markings: Because modern screen mesh offers high clarity, subtle horizontal weave accents or visual indicators prevent pets and guests from accidentally walking through extended screens.
- Mounting Hardware Configuration: Determine whether a surface mount (fastening directly onto the exterior brickmould or trim) or a recess mount (fitting neatly inside the door jamb) matches your doorway depth.
Specialized Mesh Types for Double Door Openings
Screen fabric directly impacts ventilation, durability, and pest control. While standard fiberglass mesh delivers excellent day-to-day airflow and clarity, specialized environments call for tailored materials:
- Heavy-Duty Pet-Resistant Screen: Woven from heavy vinyl-coated polyester, pet mesh resists tearing, scratching, and claw punctures from dogs and cats.
- Micro-Mesh / No-See-Um Fabric: Features a tighter weave that blocks minute gnats, biting midges, and small flying pests while maintaining pleasant airflow.
- Solar Control Mesh: Blocks up to 70% to 90% of solar heat gain and UV rays, cutting cooling loads on wide south- or west-facing patio openings.
- Durable Metal Alloys: For areas requiring maximum structural rigidity, exploring durable metal screen options provides insight into sturdy screen materials built for active entryways.
Choosing Standard vs. Custom Sizes for Retractable Double Door Screens
Standard double doors typically measure between 68 and 72 inches wide by 80 to 84 inches high. Pre-engineered double screen kits fit these standard spans with minimal adjustment. However, larger French door units and architectural double entries can span up to 100 or 108 inches wide and 94 to 100 inches high.
To establish proper sizing, measure the interior width of your door frame at three distinct locations: top, middle, and bottom. Then, measure the vertical height on both the left and right sides from the threshold to the upper jamb.
Taking accurate measurements ensures you select the correct custom screen door solutions for non-standard doorways. For sloped or irregular thresholds, add sloped sill wedge adapters to create a flat, level mounting surface for the bottom guide track.
Installation and Operation: DIY Kits vs Professional Fitting
Many modern dual-panel screen systems come as knock-down DIY kits that require only a power drill, a tape measure, and a level. Pre-sized systems often feature snap-fit tracks that assemble in 30 to 45 minutes without cutting metal.
During installation, the dual cassettes mount vertically on the left and right jambs. Top and bottom tracks bridge the span to keep both pull bars aligned. Most designs include built-in slide bolts on one pull bar. Engaging the slide bolts into the top and bottom tracks locks one screen panel securely in the center, allowing the opposite panel to operate like a single screen door for everyday foot traffic. Disengaging the bolts lets you pull both screens back into their housings to enjoy the full entryway span.
Professional installation is best suited for oversized entryways, uneven masonry openings, or historic wooden frames requiring custom shims, threshold extensions, and precision alignment.
Troubleshooting and Care for Dual Retractable Systems
Because retractable screens roll into compact housings under spring tension, seasonal wear and settling frames can occasionally affect operation. If strong gusts push the fabric out of the track, do not force the pull bar back. Instead, guide the screen edge gently into the rail before retracting the panel.
For older or worn installations, understanding rescreening techniques helps resolve loose spline or damaged fabric. When minor punctures appear from pets or debris, reviewing how to fix tears and mesh snags will keep insects out without requiring a full system replacement.
How to Maintain Your Retractable Double Door Screen
Consistent preventive care keeps dual retractable systems operating smoothly year after year:
- Clean the Floor Tracks: Vacuum the bottom guide rail regularly to remove dirt, pine needles, and pebbles that can snag the gliding shoes.
- Lubricate Moving Channels: Apply a light coat of dry silicone spray to the top and bottom guide tracks twice a year. Avoid oily lubricants or grease, which attract dirt and gum up the rollers.
- Wash the Screen Mesh: Clean the fabric using a soft brush, warm water, and mild dish soap to remove dust and pollen. Let the mesh dry completely before rolling it back into the cassette.
- Practice Seasonal Retraction: During high-wind storms, heavy rains, and winter freezes, retract both screen panels inside their protective housings.
When older hardware binds or slips, applying practical screen door repair methods can restore tension lines, guide shoes, and latch pins cost-effectively.
Frequently Asked Questions About Retractable Double Door Screens
Can retractable screens be installed on out-swing French doors?
Yes. On out-swing French doors, the dual screen cassettes mount on the interior door jamb or interior trim. This keeps the screens safely protected inside while allowing the main doors to swing freely toward your patio or garden. For in-swing doors, the screen housings mount to the exterior casing.
How do dual retractable screens seal in the center?
Dual retractable systems feature full-length vertical magnetic strips running along the aluminum leading edge of each screen panel. When both sides are drawn together, the magnets join to form a bug-tight seal. For added stability, one panel can be anchored with top and bottom slide bolts, creating a firm center post for the active panel to meet.
What prevents the screens from snapping back too quickly?
Quality dual retractable doors incorporate internal speed reducers or hydraulic dampers within the cassette cylinders. These components regulate recoil speed, allowing the spring tension to pull the mesh in smoothly and quietly without sudden snaps.
Conclusion
A well-fitted retractable double door screen provides a balance of bug-free ventilation, unobstructed outdoor views, and practical space savings for wide architectural openings. By choosing sturdy aluminum housings, reliable magnetic center closures, and mesh suited to your lifestyle, you can enjoy fresh outdoor air throughout the warm seasons.
At Complete Window Care, we believe in restoring comfort and performance through smart maintenance and focused repairs rather than pushing expensive full-frame replacements. If you want to evaluate screens for your home, explore our complete guide to door screens to find the ideal setup for your entryways.
